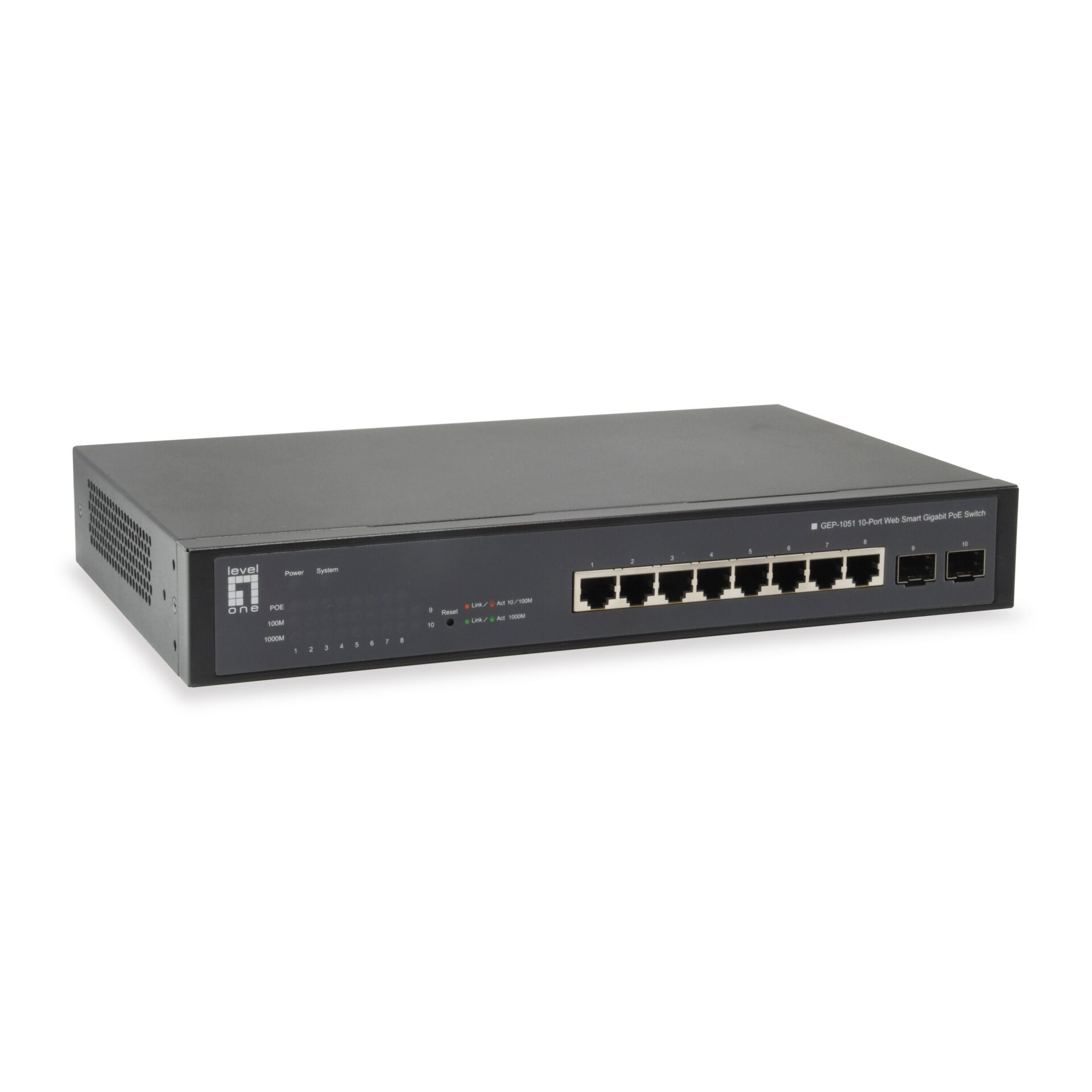

LevelOne GEP-1051 10-Port Smart-Gigabit-PoE-Switch

Τεχνικές προδιαγραφές

Γενικά

Device Type

Switch
10 ports
smart

Enclosure Type

Desktop, rack-mountable

Subtype

Gigabit Ethernet

Ports

8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP

Power Over Ethernet (PoE)

PoE+

PoE Budget

70 W

Εκτέλεση

Backplane speed: 20 Gbps ¦ Forwarding performance: 14.9 Mpps

Capacity

ACL entries: 256 ¦ Priority queues per port: 8

MAC Address Table Size

8K entries

Jumbo Frame Support

10KB

Routing Protocol

IGMPv2, IGMP, IGMPv3

Remote Management Protocol

SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI, NTP

Encryption Algorithm

SSL

Authentication Method

RADIUS, TACACS+

Χαρακτηριστικά

Flow control, VΔίκτυο support, IGMP snooping, Syslog support, port mirroring, store and forward, MAC address filtering, IPv6 support, DDos attack prevention, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Quality of Service (QoS), MLD snooping, Dynamic ARP Inspection (DAI), reset button, IPv4 support, fanless, LLDP support, Link Aggregation Control Protocol (LACP), SNMP trap, DHCP client, Management Information Base (MIB), Strict Priority Queuing (SPQ), Neighbor Discovery Protocol (NDP), port isolation, DiffServ Code Point (DSCP) support, IGMP filtering, IGMP throttling, 4.1MB packet buffer, Storm Control, CPU protection, Authentication, Authorization and Accounting (AAA), IGMP querier, Root Guard, Energy-Efficient Ethernet (EEE), Βάροςed Round Robin (WRR), loopback detection, IPv6 management, VΔίκτυο Tagging, IGMP immediate leave

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az, UPnP

Flash Μνήμη

16 MB

Status Indicators

Power, system, link/activity

Συνδεσιμότητα

Interfaces

8 x 1000Base-T RJ-45 PoE+
30 W ¦ 2 x Gigabit Δίκτυο SFP

Power

Συσκευή ισχύος

Internal power supply

Voltage Required

AC 120/230 V (50/60 Hz)

Power Consumption Operational

80 Watt

Miscellaneous

Rack Mounting Kit

Included

MTBF

118,824 hours

Compliant Standards

UL, VCCI, BSMI, FCC

Διαστάσεις & Βάρος

Πλάτος

29.4 cm

Βάθος

18 cm

Ύψος

4.4 cm

Βάρος

2 kg

Περιβαλλοντικές παράμετροι

Min Operating Temperature

0 °C

Max Operating Temperature

50 °C

Humidity Range Operating

10
90% (non-condensing)
