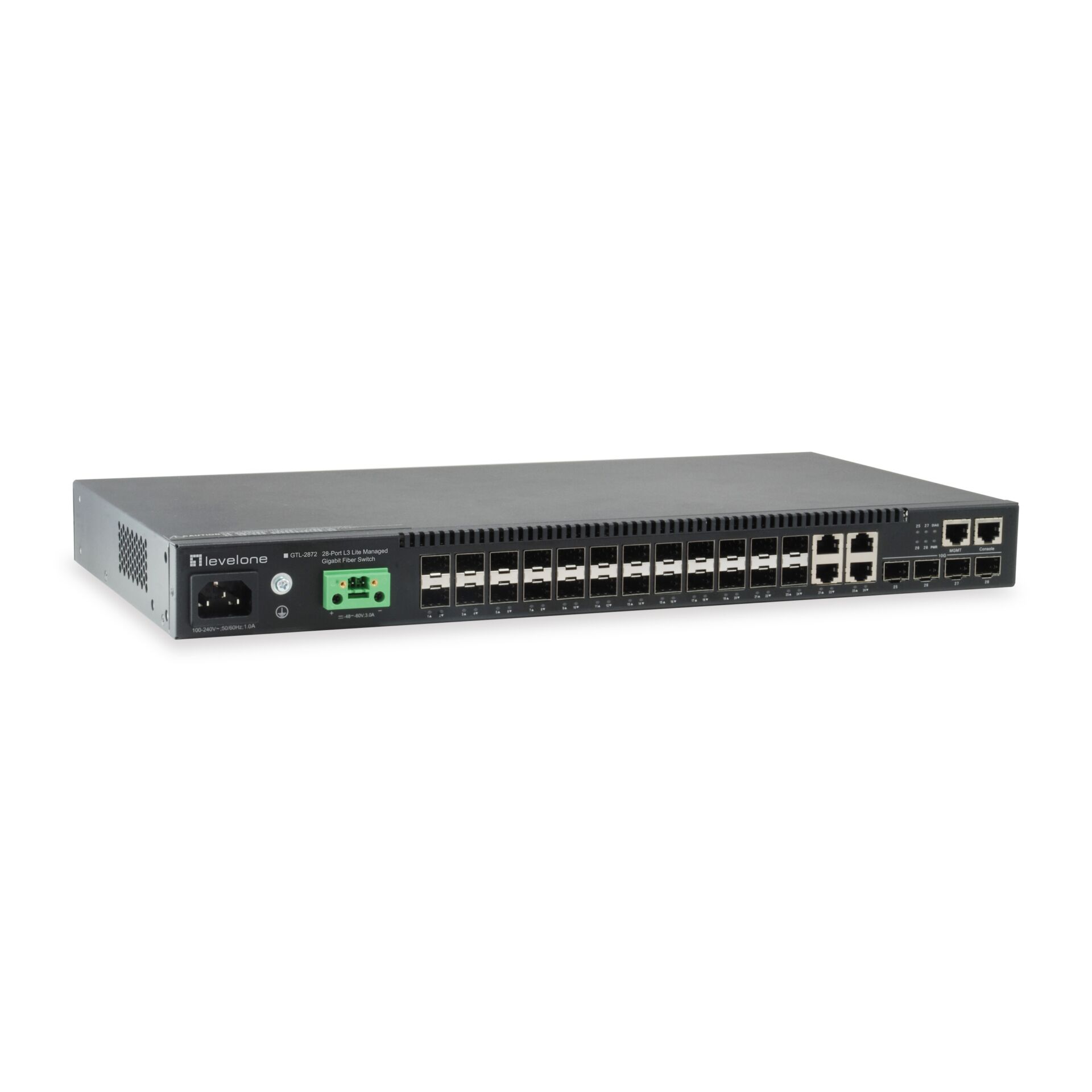

LevelOne GTL-2872 KILBY 28-Port L3 Lite Gigabit Switch

Τεχνικές προδιαγραφές

Γενικά

Device Type

Switch
28 ports
L3 Lite
Managed

Enclosure Type

Rack-mountable

Subtype

Gigabit Ethernet

Ports

20 x Gigabit SFP + 4 x shared 10/100/1000 + 4 x 10 Gigabit SFP+

Εκτέλεση

Backplane speed: 128 Gbps ¦ Packet forwarding rate: 95 Mbps ¦ Switching capacity: 128 Gbps

Capacity

VΔίκτυοs supported: 4000

MAC Address Table Size

16K entries

Jumbo Frame Support

9KB

Routing Protocol

IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLD

Remote Management Protocol

SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, TFTP, CLI, OAM

Χαρακτηριστικά

Auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Dynamic ARP Inspection (DAI), Per-VΔίκτυο Spanning Tree Plus (PVST+), IPv4 support, Link Aggregation Control Protocol (LACP), Port Security, Dynamic VΔίκτυο Support (GVRP), Loopback, IGMP proxy, 802.1x authentication, IGMP filtering, IGMP throttling, Protocol-based VΔίκτυοs support, Back Pressure Support, VΔίκτυο Trunking Protocol (VTP), Digital Diagnostics Οθόνηing (DDM), IGMP querier, VΔίκτυο Double Tagging (Q-in-Q), Guest VΔίκτυο, Energy-Efficient Ethernet (EEE), MAC based VΔίκτυο, Layer 2 Control Protocol tunneling, port-based VΔίκτυο, IGMP immediate leave, ARP spoofing, VΔίκτυο trunking

Compliant Standards

IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1v, IEEE 802.1ag, IEEE 802.3az, ITU-T Y.1731

RAM

512 MB

Flash Μνήμη

256 MB

Status Indicators

Power, link/activity, diagnostic

Συνδεσιμότητα

Interfaces

20 x 1000Base-X SFP ¦ 4 x Gigabit Δίκτυο RJ-45/SFP ¦ 4 x 10GBase-X SFP+ ¦ 1 x console RJ-45

Power

Συσκευή ισχύος

Internal power supply

Voltage Required

AC 120/230 V / DC 48
60 V (50/60 Hz)

Power Consumption Operational

21.48 Watt

Miscellaneous

Rack Mounting Kit

Included

MTBF

298,951 hours

Compliant Standards

BSMI, FCC, UL 60950-1, CISPR

Διαστάσεις & Βάρος

Πλάτος

44 cm

Βάθος

22 cm

Ύψος

4.4 cm

Βάρος

3.32 kg

Περιβαλλοντικές παράμετροι

Min Operating Temperature

0 °C

Max Operating Temperature

50 °C

Humidity Range Operating

10
90% (non-condensing)

Humidity Range Αποθήκευση

10
90% (non-condensing)
