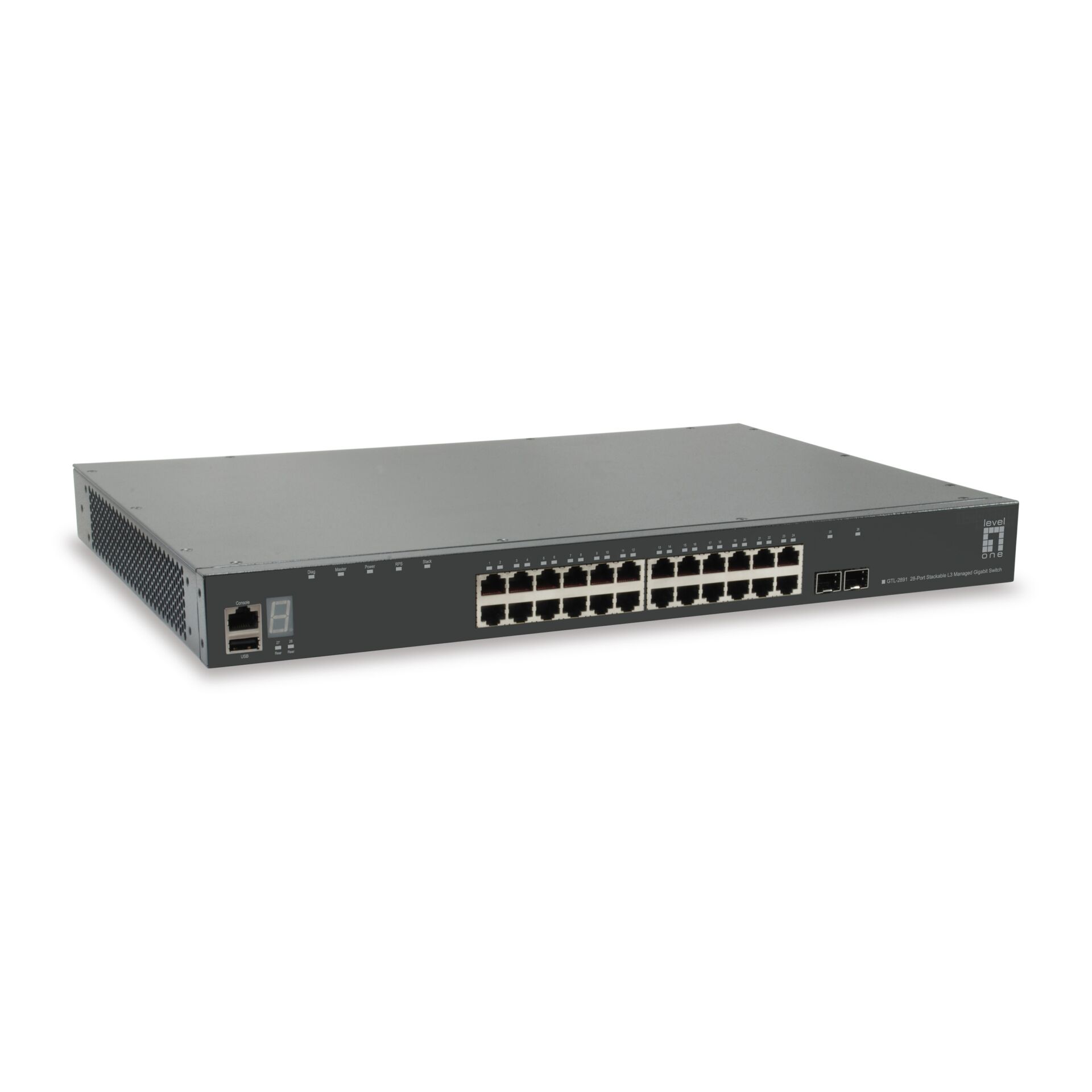

LevelOne GTL-2891 KILBY 28-Port L3 Managed-Switch

Τεχνικές προδιαγραφές

Γενικά

Device Type

Switch
28 ports
L3
Managed

Enclosure Type

Rack-mountable 1U

Subtype

Gigabit Ethernet

Ports

24 x 10/100/1000 + 2 x 10 Gigabit SFP+ (uplink)

Εκτέλεση

Switching capacity: 128 Gbps ¦ Forwarding performance: 95.23 Mpps

Capacity

Trunk groups: 16

MAC Address Table Size

16K entries

Jumbo Frame Support

10KB

Routing Protocol

IGMPv2, IGMP, IGMPv3

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, RMON 3, SNMP 3, SNMP 2c, HTTP, CLI

Χαρακτηριστικά

Auto-negotiation, BOOTP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, stackable, IPv6 support, firmware upgradable, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Per-VΔίκτυο Spanning Tree (PVST), PIM-SM snooping, Virtual Route Redundancy Protocol (VRRP) support, DHCP snooping, Access Control List (ACL) support, RADIUS support, SSH support, Καλώδιο Diagnostics Function, Equal-Cost Multipath (ECMP), Uni-Directional Link Detection (UDLD), IPv4 support, LLDP support, Management Information Base (MIB), Dynamic VΔίκτυο Support (GVRP), loop prevention, Generic Attribute Registration Protocol (GARP), Generic VΔίκτυο Registration Protocol (GVRP), SNMP support, DiffServ Code Point (DSCP) support, Ethernet Ring Protection Switching (ERPS), IGMP filtering, IGMP throttling, PIM-DM snooping, IP source guard, ARP inspection, VΔίκτυο Trunking Protocol (VTP), Bridge protocol data unit (BPDU), Management Information Base (MIB) II, rate limit, Open Shortest Path First (OSPF), Digital Diagnostics Οθόνηing (DDM), MAC address authentication, Root Guard, VΔίκτυο mirroring

Compliant Standards

IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1v, IEEE 802.1ag, IEEE 802.1ab (LLDP), ITU-T Y.1731

RAM

512 MB

Flash Μνήμη

128 MB

Status Indicators

Power, RPS (Redundant Power Supply), diagnostic, master, stack

Συνδεσιμότητα

Interfaces

24 x 1000Base-T RJ-45 ¦ 2 x SFP+ ¦ 1 x USB ¦ 1 x console RJ-45

Expansion Slots

1 SFP+

Power

Συσκευή ισχύος

Internal power supply

Power Provided

35 Watt

Voltage Required

AC 120/230 V (50
60 Hz)

Miscellaneous

Included Accessories

Rubber feet

Καλώδιοs Included

1 x console cable

Rack Mounting Kit

Included

Compliant Standards

UL, CB, FCC, RoHS, WEEE

Διαστάσεις & Βάρος

Πλάτος

44 cm

Βάθος

31.5 cm

Ύψος

4.4 cm

Βάρος

3.7 kg

Περιβαλλοντικές παράμετροι

Min Operating Temperature

0 °C

Max Operating Temperature

45 °C

Humidity Range Operating

10
90% (non-condensing)

Min Αποθήκευση Temperature

-40 °C

Max Αποθήκευση Temperature

70 °C

Humidity Range Αποθήκευση

10
90% (non-condensing)
